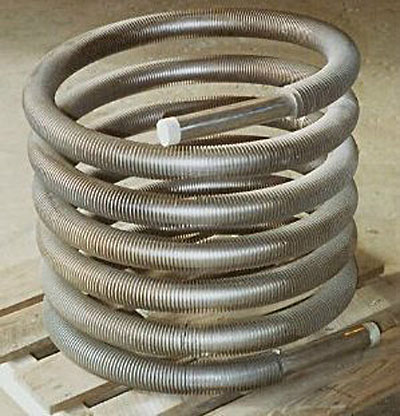

Coiled tubes

  • Fewer connections needed means less risk of leakage and therefore less need for inspection and maintenance
  • Reduced overall installation costs due to reduction in fitting requirements and the overall installation time
  • Reduction of scrap by installation, due to exact cut from foil
  • Compact storage & packing
  • Cheaper shipping options

    • Seamless cold drawn coiled tubing

    According to ASTM A 269, A 213 (average wall), A 632 or EN 10216-5
    coil lengths up to 1500 meters long (without welds)
    Packing: level wounded on (pressed) wooden reels or single loose coils.

Specifications:

  • Cold drawn, bright annealed
  • Smooth finish up to <0,4 mm
  • Thermo couple clean per ASTM A 632 S3
  • Oil and grease free, for oxygen use.
  • Hardness max. 80 HRB
  • Intergranular corrosion test per ASTM A262 practice ‘’E’’
  • Packed on wooden, plastic drums or loose coils

Alloys:
From stock: 316L, 304L, 825
On request: 321, 310S, 904L, 200, 400, 600, 625, C276, C22

Welded coiled tubing

Specifications:

  • bright annealed
  • according  to ASTM A 249/A 269 or EN 10217-7
  • coil lengths of 100 to 800 mtr.
  • Supplied in single loose coils, wooden or metal reels: only on request.

Coillength depending on size and wall thickness. On request coil lengths to 4.572 mtr. can be supplied and with orbital welds, coils can go up to 24.384 mtr. long.


Alloys:
From stock: 316L, 316Ti
On request: 304L, 825

Standard dimension

Metric sizes   Imperial sizes
0,80 x 0,25 mm 8,00 x 1,00 mm 1/32''  x  0,007'' 3/8''  x  0,048''
2,00 x 0,95 mm 8,00 x 1,50 mm 1/16''  x  0,012'' 3/8''  x  0,065''
2,50 x 1,15 mm 10,00 x 1,00 mm 1/16'' x 0,014'' 3/8'' x 0,083''
2,50 x 1,21 mm 10,00 x 1,50 mm 1/16''  x  0,020'' 1/2''  x  0,035''
3,00 x 0,50 mm 12,00 x 1,00 mm 1/8''    x  0,020'' 1/2''  x  0,048''
3,00 x 1,00 mm 12,00 x 1,50 mm 1/8''    x  0,028'' 1/2''  x  0,065''
4,00 x 0,50 mm 12,00 x 2,00 mm 1/8''    x  0,035'' 1/2''  x  0,083''
4,00 x 1,00 mm 14,00 x 1,00 mm 3/16''   x  0,035'' 3/4''  x  0,035''
5,00 x 0,50 mm 15,00 x 1,00 mm 1/4''    x  0,035'' 3/4''  x  0,048''
5,00 x 1,00 mm 16,00 x 1,00 mm 1/4''    x  0,048'' 3/4''  x  0,065''
6,00 x 0,50 mm 16,00 x 1,50 mm 1/4''    x  0,065'' 1''   x  0,048''
6,00 x 1,00 mm 18,00 x 1,50 mm 1/4''    x  0,083'' 1''   x  0,065''
6,00 x 1,50 mm 20,00 x 1,50 mm 3/8''    x  0,035'' 1''   x  0,080''

*The coil lengths are from 30 till 1,200 meters.
*The inside coil diameter below 5,00 mm is between 200 and 400 mm.
*The inside coil diameter for 6,00 mm and above between 400 and 680 mm.



Seamless Coils – When Failure is Not an Option

HandyTube’s Xtreme Length™ coils can exceed 6,000 feet (2 km) in length without any longitudinal or orbital welds. With seamless coil tubing, there is no risk of impurities that are often associated with welded tubing. This makes seamless the preferred option for critical applications.



  • Increased corrosion resistance
  • Available in multiple sizes compatible with standard fittings
  • Improved reliability—using fewer fittings reduces the opportunity for defect, such as leaks and other long-term failures.
  • Reduced installation costs—installing continuous length, seamless tube from HandyTube takes less time and is more reliable than coupling multiple shorter lengths.
