Stainless Steel Vessels:-

Churn diagram

Diagram & Table Key
a. Overall depth
b. Internal depth
c. Overall diameter
d. Internal diameter
e. Base diameter
stainless-steel-vessel

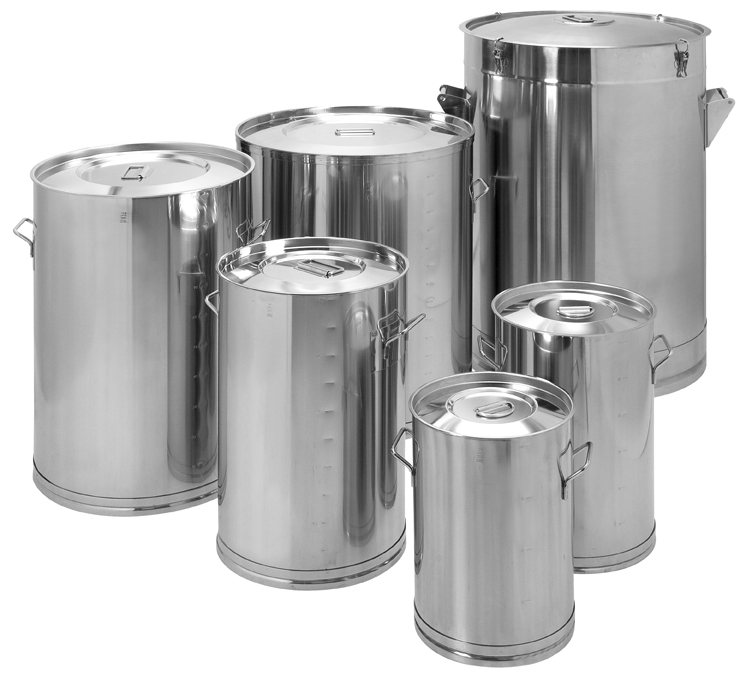

Vessels

Harsh Steel stainless steel vessels are available in 316L and 304 grade and can be supplied either plain or graduated. Vessels come complete with fixed side handles and base skirtband, have crevice and pit free interiors and are bright polished throughout. An optional stainless steel lid with top swing handle is available for all vessel sizes.

Part no Capacity a (mm) b (mm) c (mm) d (mm) e (mm) Skirt Handle Grad Lid Part No
HS-18 20 ltr 390 380 350 265 275 YES SIDE - VLI420
HS-19 20 ltr 390 380 350 265 275 YES SIDE 5-20/5 VLI*20
HS-20 25 ltr 390 380 380 300 305 YES SIDE - VLI425
HS-21 25 ltr 390 380 380 300 305 YES SIDE 5-25/5 VLI*25
HS-22 30 ltr 460 445 380 300 305 YES SIDE - VLI430
HS-23 30 ltr 460 445 380 300 305 YES SIDE 5-30/5 VLI*30
HS-24 50 ltr 560 535 435 350 355 YES SIDE - VLI450
HS-25 50 ltr 560 535 435 350 355 YES SIDE 5-50/5 VLI*50
HS-26 75 ltr 625 600 480 400 405 YES SIDE - VLI475
HS-27 75 ltr 625 600 480 400 405 YES SIDE 5-75/5 VLI*75
HS-28 100 ltr 675 650 520 445 455 YES SIDE - VLI4100
HS-29 100 ltr 675 650 520 445 455 YES SIDE 10-100/10 VLI*100
HS-30 150 ltr 675 650 620 550 555 YES SIDE - VLI4150
HS-31 150 ltr 675 650 620 550 555 YES SIDE 10-150/10 VLI*150
HS-32 200 ltr 890 850 730 600 625 YES SIDE - VLI6200
